PLM - Odoo 15 Enterprise Book

Engineering Change Orders

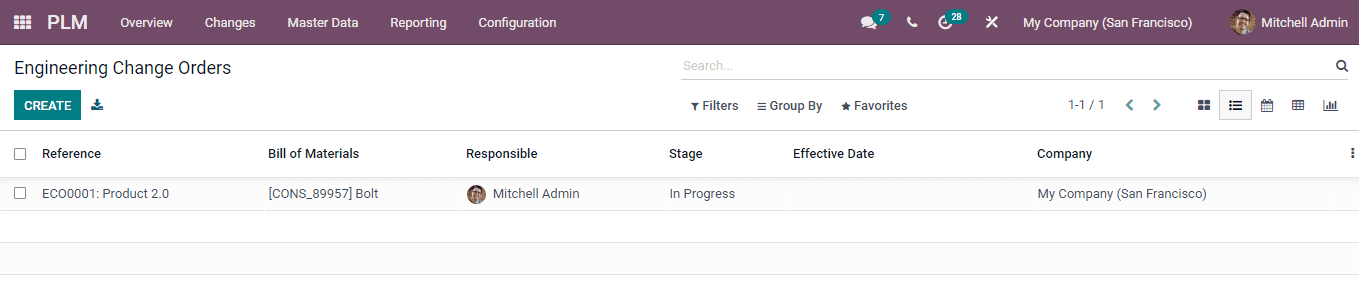

El documento de la orden de cambio de ingeniería (ECO) estados sobre los nuevos cambios o el Nuevo diseño hecho a los productos existentes.Le proporcionan la lista de cambios, Componentes nuevos o modificados y otra información relacionada sobre el cambio propuesto. Desde el módulo PLM, puede hacer ver los pedidos de cambio de ingeniería seleccionando el Pestaña Cambios.La lista de cambios existentes se muestra junto con sus facturas de Materiales, responsables y escenario.Los cambios se pueden agrupar sobre la base del producto, Estado, etapa y empresa.

odoo-plm

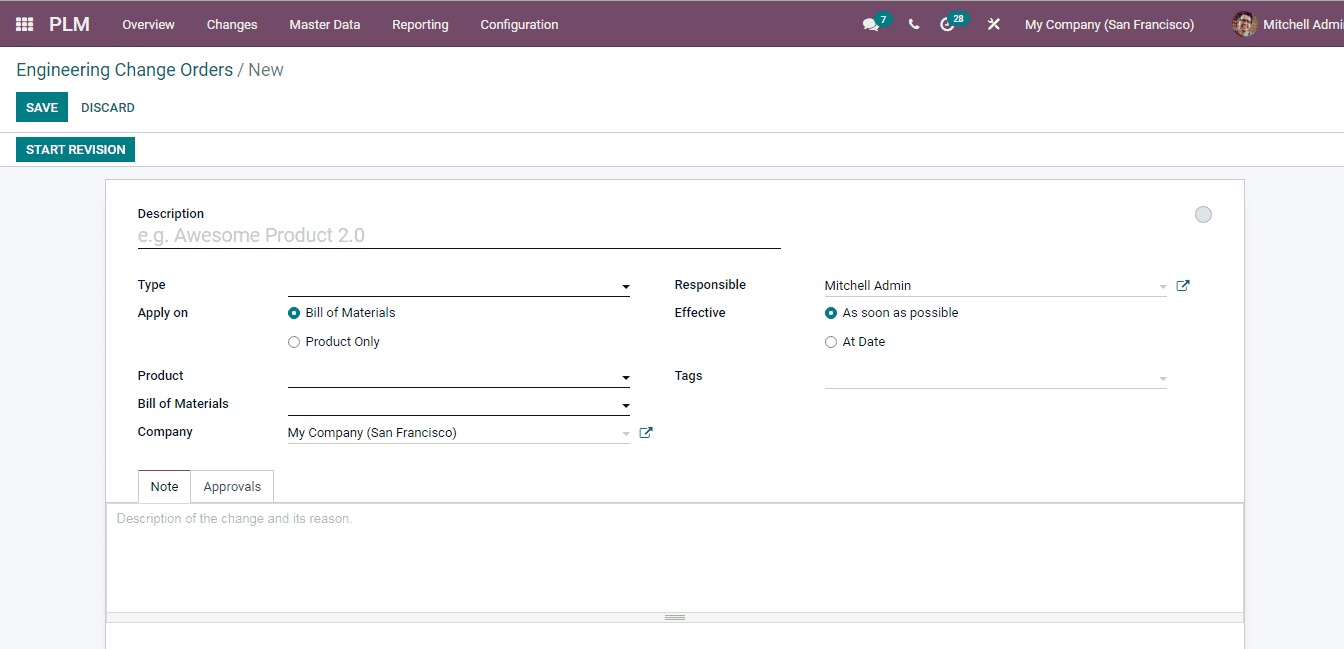

Para crear un nuevo orden de cambio, seleccione el botón Crear.En el nuevo cambio de ingeniería Pedidos, ingrese los detalles como:

Description: The brief description of the ECO can be included here.

Type: The type of the change must be inserted at the given field.

Apply On: You can either apply the change to the Bill of Materials or on the Product Only.

Product: Name of the product upon which the change order will be applied.

Bill of Materials: Add the BoM to the field on which the creating change will be applied.

Company: You can add the name of the company in this given field.

Responsible: The name of the employee who will be responsible for the changing procedures and will be held accountable for the whole process must be added in this field.

Effective: The date on which the changes should be applied can be mentioned. It can be either As Soon As Possible or you can add an accurate Date.

Tags: Tags related to the changes can be inserted here.

At the Note tab, provide the detailed information of the reason for the changes along with the changes that will take place. Under the Approvals tab, you can define the approval roles on the ECO stages. While making changes in the existing products you need to have proper approvals from the authorised employer. Therefore it is necessary to fill the Approvals tab. After entering all the details you can start revising the ECO by selecting the START REVISION button.

odoo-plm

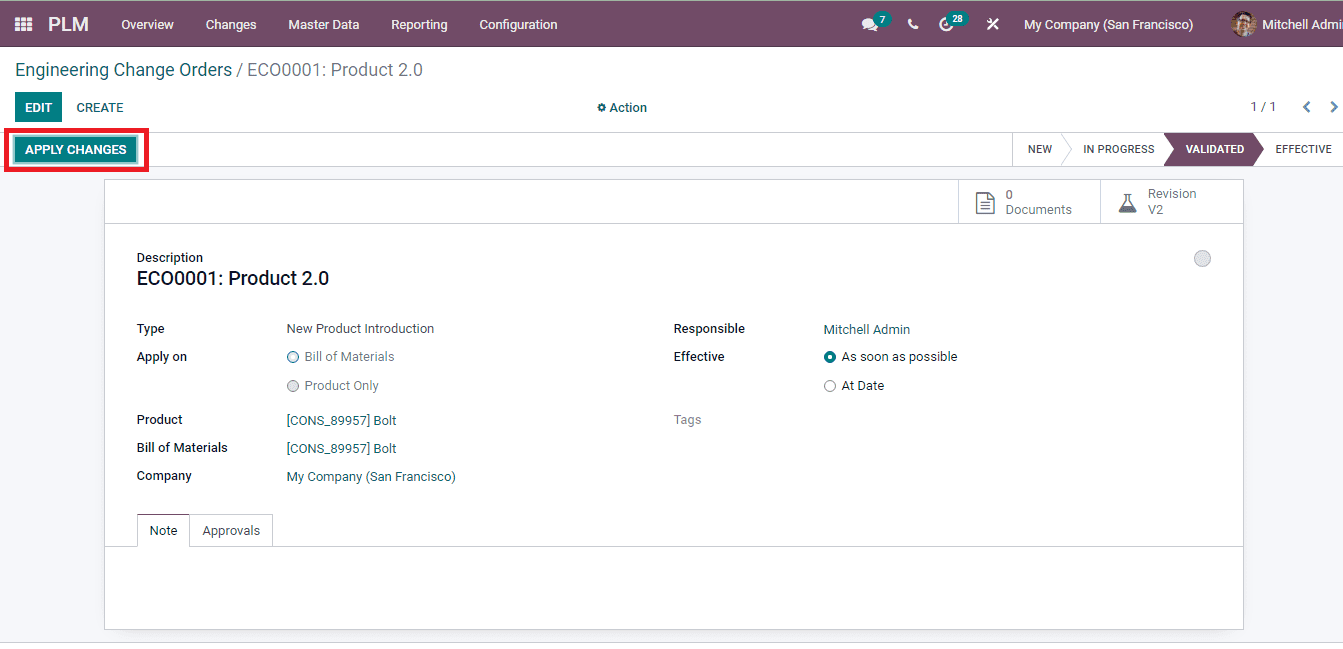

You can adjust the stages of the engineering change orders to In Progress, Validated and Effective as per the progress. The changes can be applied on the products by selecting the APPLY CHANGES button when the change reaches the VALIDATED stage. The next stage of the ECO is the EFFECTIVE stage. By converting the product to this stage the new version of the product will be updated with the stated changes.

odoo-plm

ECO Configurations

From the PLM module you can also set up the major settings of the ECO such as the stages, types and tags. Let us look at each of them.

ECO Stages

The ECO stages will help in configuring different stages. By looking at the stages of ECO you can understand the position where the change has been. The processes of the change can be identified by looking at the stage. When the changes in the product are totally completed and new updates are made, then the stage will reach its final stage called EFFECTIVE.

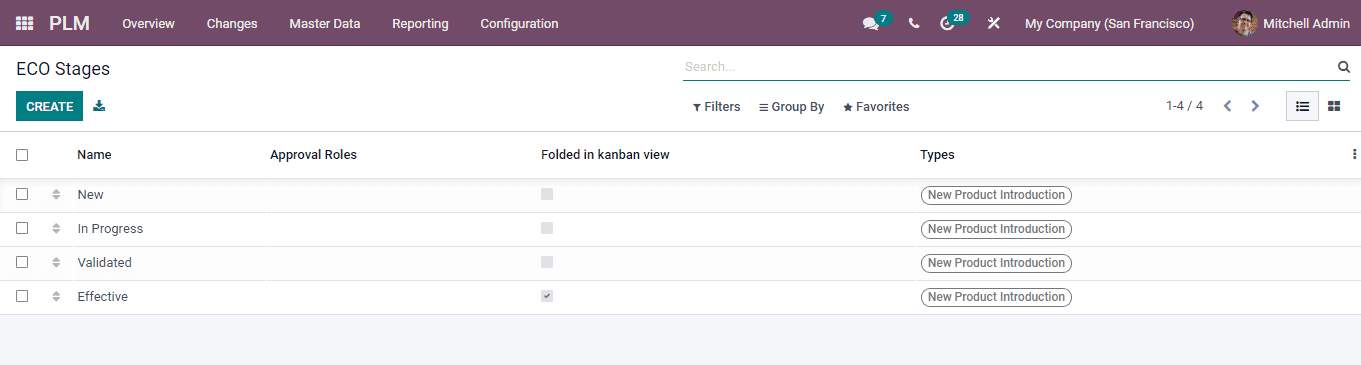

The stages of the engineering changes order can be configured by selecting the ECO Stages option from the Configuration tab. The list of existing stages is displayed along with their corresponding Approval Roles. Changes can be made in them by simply clicking on the stage. By default there are 4 stages, they are New, In Progress, Validated and Effective.

odoo-plm

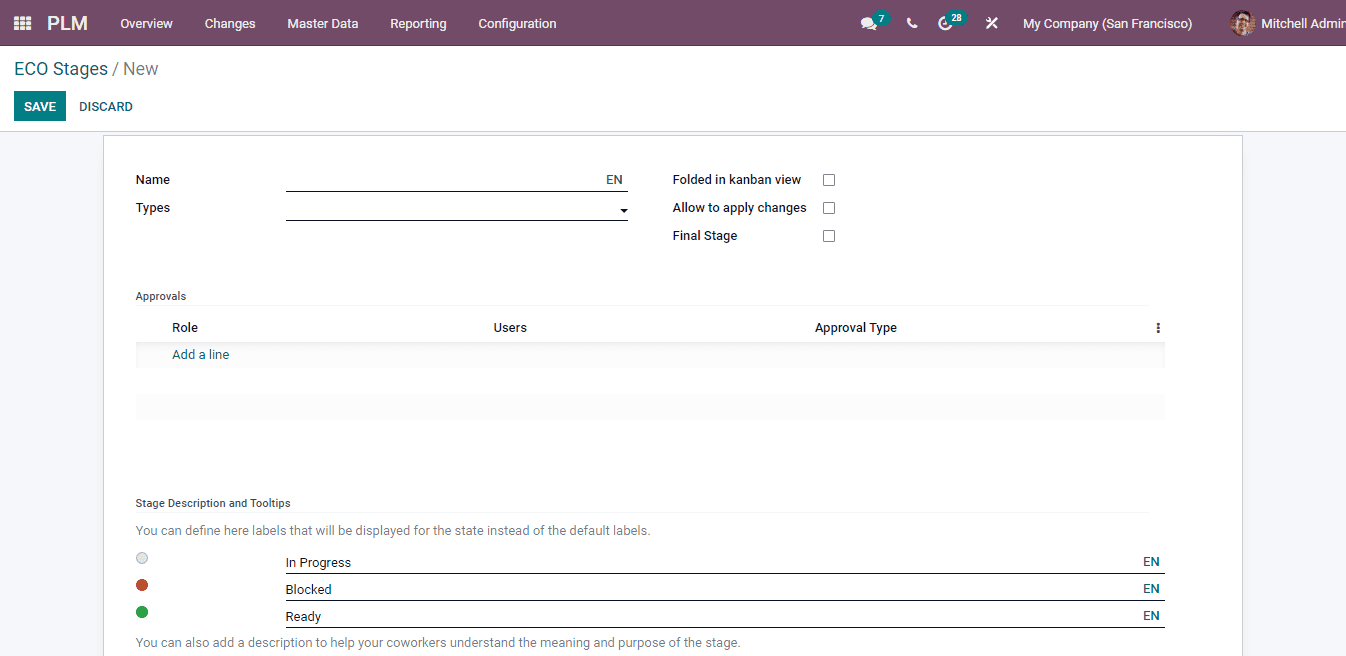

By selecting the CREATE button, you can create a new ECO Stage. At the displayed form page enter the details such as the Name of the stage, ECO type, whether the stage can be Folded in Kanban view, whether changes can be applied at this creating stage and check if the current creating stage is the final stage of the process. At the Approvals tab, set the Role, Users and Approval Type. You can also define the labels that will be displayed instead of default labels. Descriptions can be added so that the co-workers will understand the meaning and purpose of the stage.

odoo-plm

ECO Types

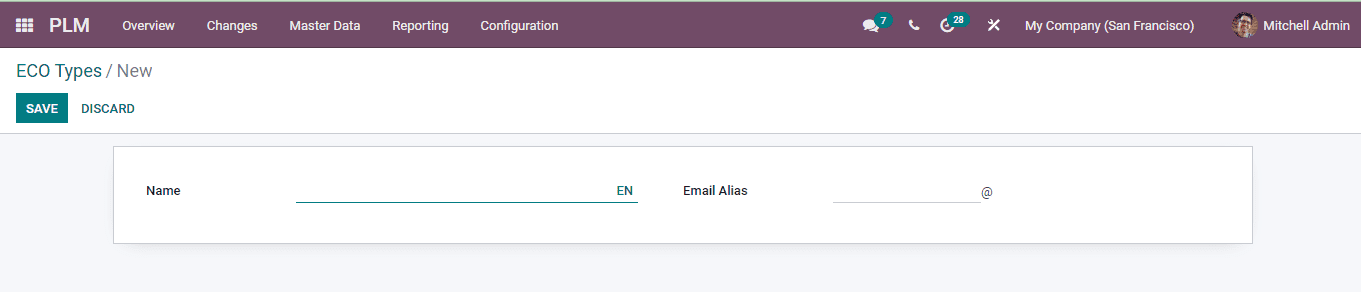

In the same way, ECO Types can also be configured by selecting them from the Configuration tab. New types can be added to the system by simply clicking the CREATE button. Insert the Name of the new type and the Email Alias at the fields provided.

odoo-plm

ECO Tags

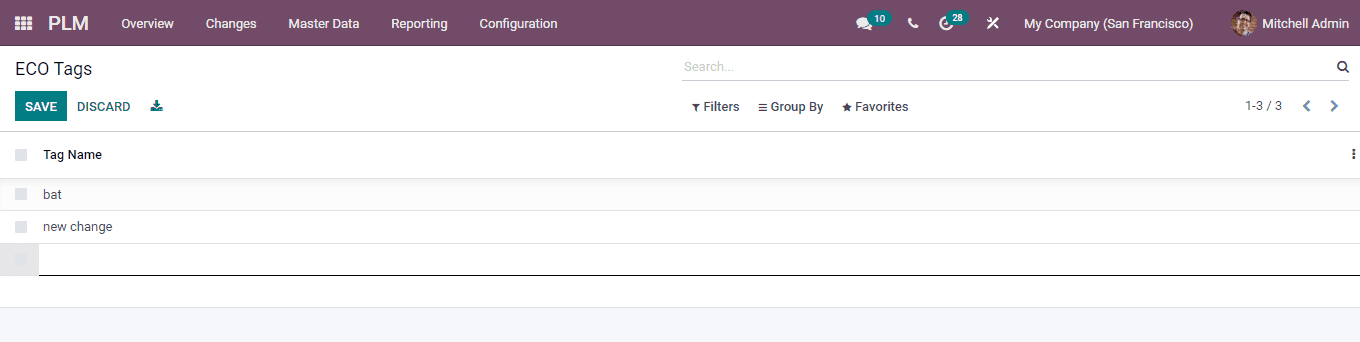

For easy recognition tags can be attached to the ECOs. These tags can be configured by selecting the ECO Tags option from the Configuration tab. The list of existing tags will be displayed. To add new tags to the list select the CREATE button. A new row will be created, enter the name of the tag and press the SAVE button to add the newly created tag.

odoo-plm
