Quality control points

Using quality control points the user can define the stages when the product has to be checked. The user can also decide how the quality should be checked and what all factors are to be checked. For setting control points, go to

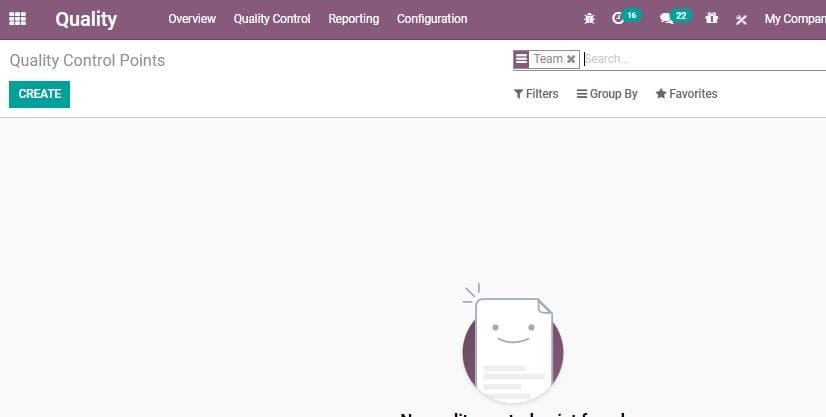

Quality -> Quality Control -> Control Points

odoo-manufacturing

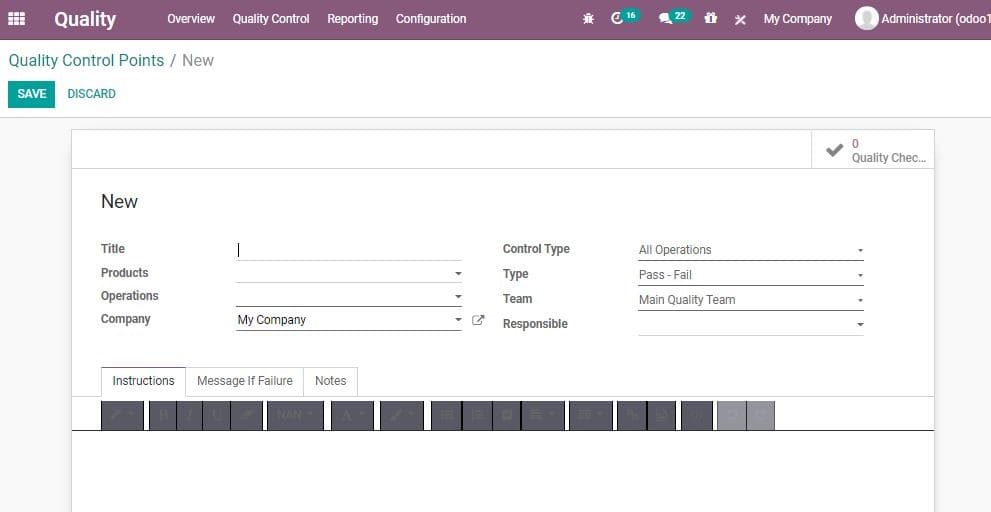

Then click CREATE Button to create new CONTROL POINT

odoo-manufacturing

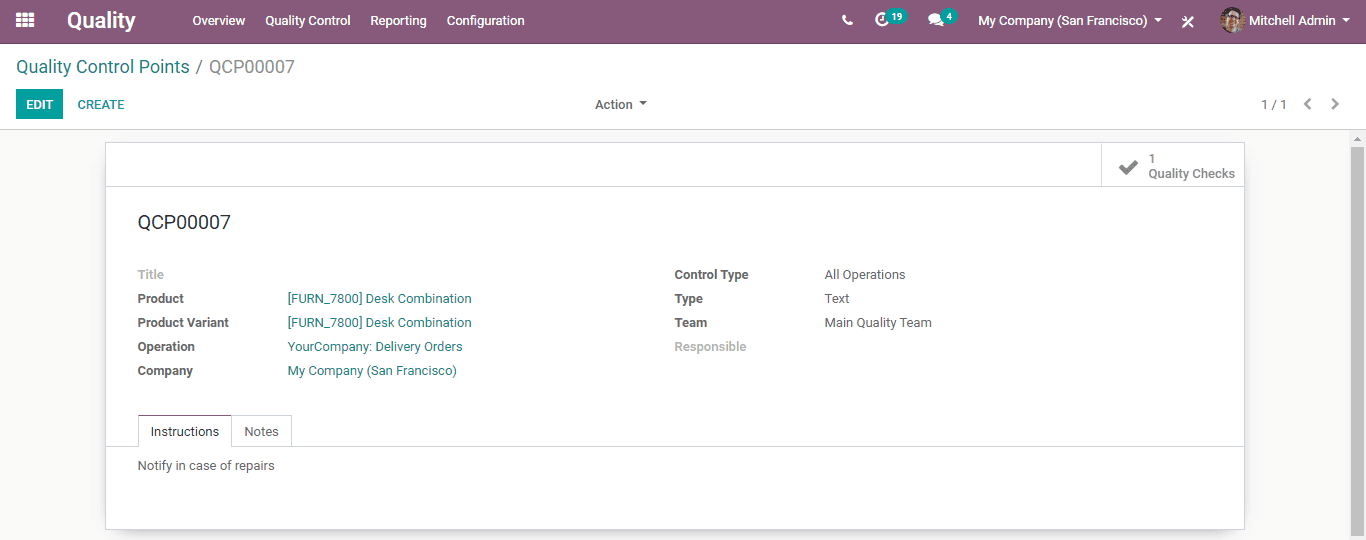

In the above given create form of the control points you can find many fields as given below:

Title: Title for the control point.

Product: The product for which quality has to be tested.

Product Variant: The user can select the product variant for quality check for products with multiple variants.

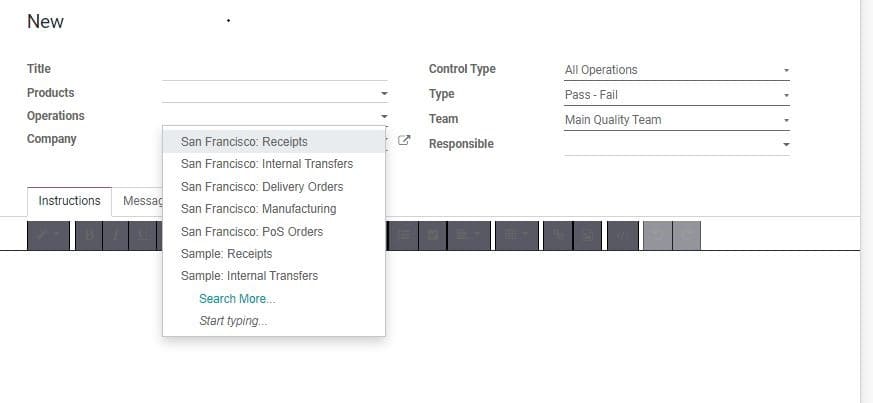

Operation: The stage at which the quality has to be checked.

odoo-manufacturing

Odoo enables three main types of operations.

Receipts: On receipt of order (When a company receives a purchase order)

Delivery Orders: At the time of delivering a product (On delivering a product based on a sales order)

Manufacturing: Quality check at manufacturing stage.

Note: If user is involving with multi-companies, Odoo provides three more options. Note, Message if failure and Instruction. All these messages can be sent in the form of notes.

odoo-manufacturing

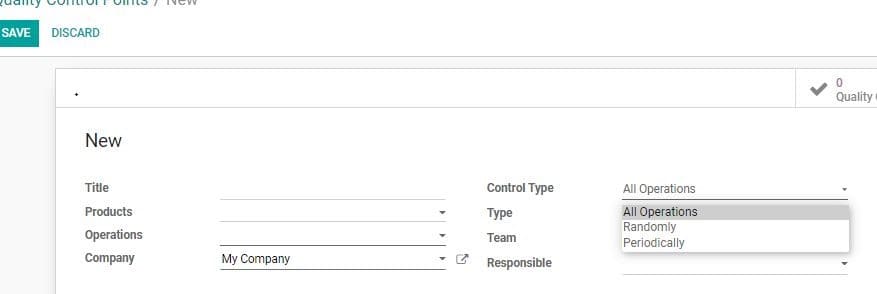

Control Type: In Odoo 14, Control types define the interval of the quality check. We can find three options under this:

odoo-manufacturing

All Operations: On selecting this Quality check will be enabled for every operation.

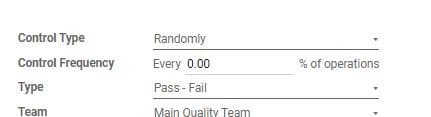

Randomly: This enables random check of quality. When choosing randomly. The user gets another field on selecting this -Control Frequency. On selecting this Quality check can be generated on the basis of this Control Frequency.

odoo-manufacturing

Periodically: On selecting this Quality check can be initiated periodically. The interval can be set as Day, Week and Month.

odoo-manufacturing

Type: Quality of a product will be checked on the basis of selected type. Here, you get four options:

odoo-manufacturing

Team: Assign a quality check team to check quality.

Responsible: A user can be selected as responsible person for the quality check.

Instructions: Can give any instruction required

odoo-manufacturing

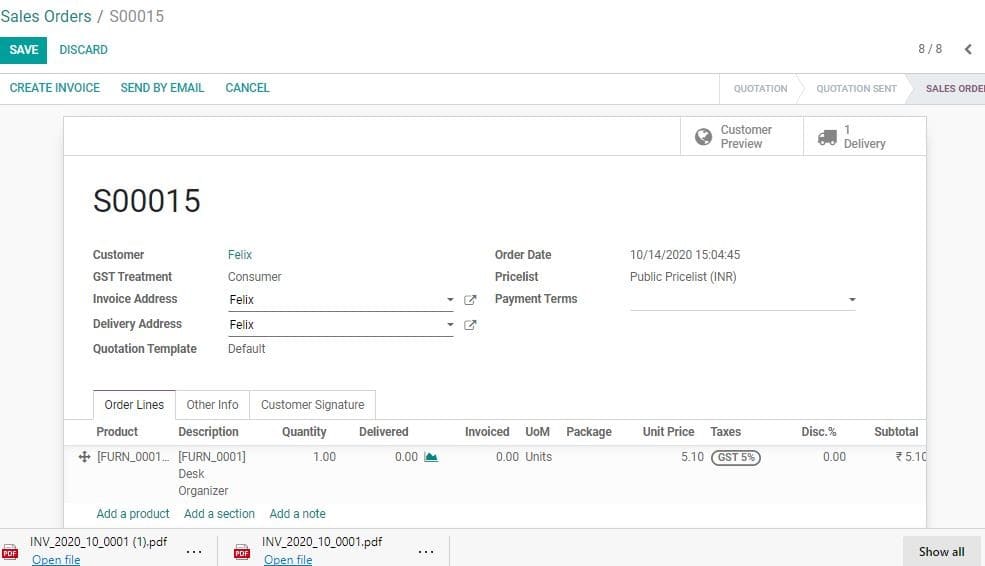

Now, the user can create a sales order for the corresponding item.

odoo-manufacturing

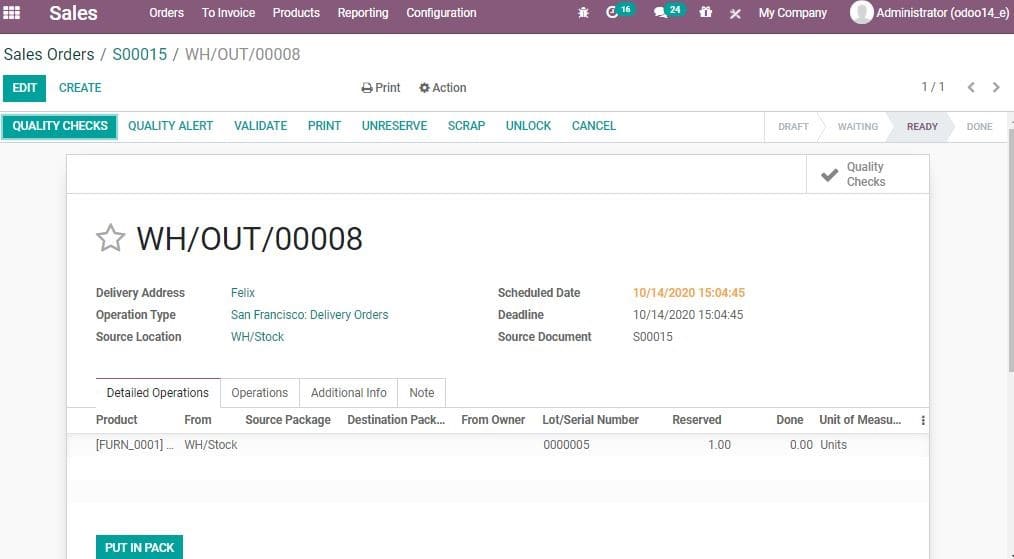

You can click on Delivery button then. A user can see Quality Check Button as active at the delivery stage. Then, click Quality Checks.

odoo-manufacturing

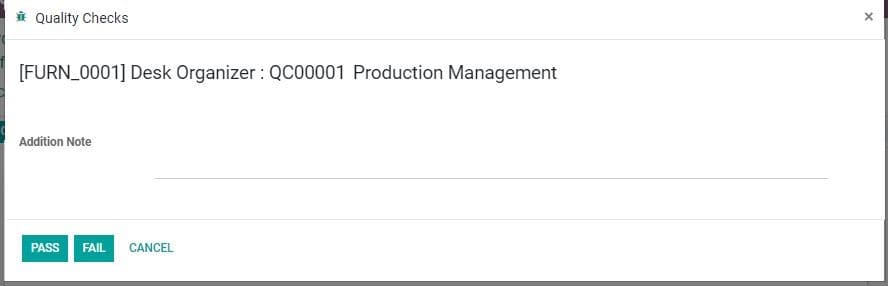

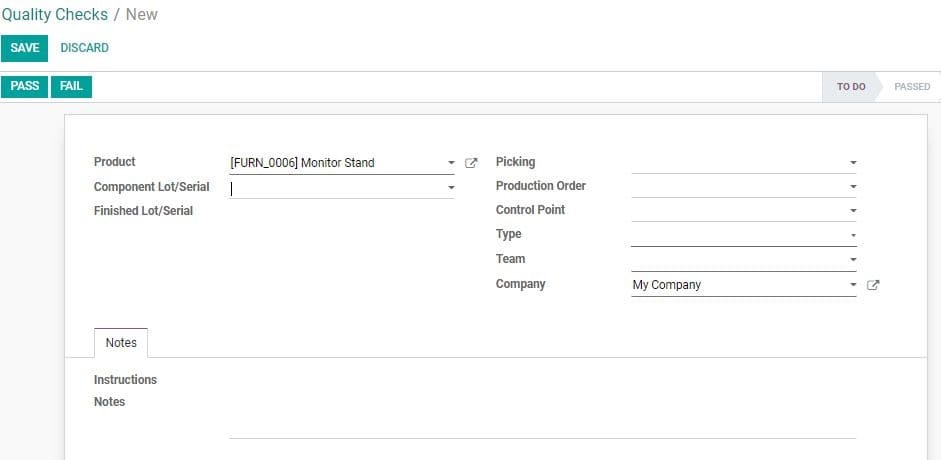

Then you will get a pop-up window as given below. Here, the user can select pass or fail button.

odoo-manufacturing

Then the status of this quality check will change. Quality Check Smart Button in the delivery order will turn green.

odoo-manufacturing

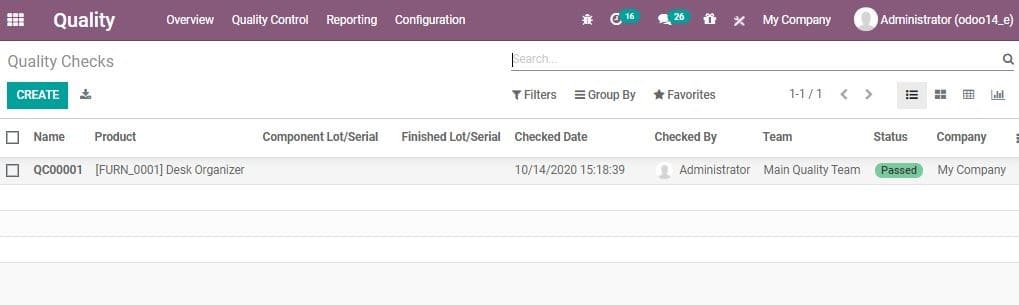

Quality -> Quality Controls -> Quality Checks

All Quality Checks will be shown here with the Status.

odoo-manufacturing odoo-manufacturing

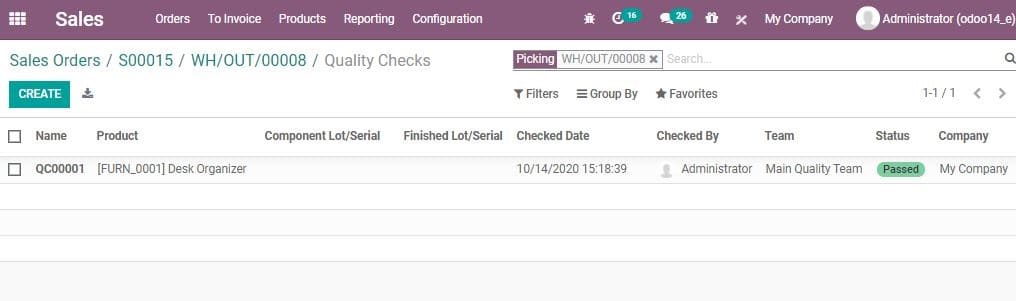

In the above images we can see the status of quality check in Sales and in Quality module.

If the quality team notices any defect or damage in the quality then the quality will be marked as failed.

odoo-manufacturing

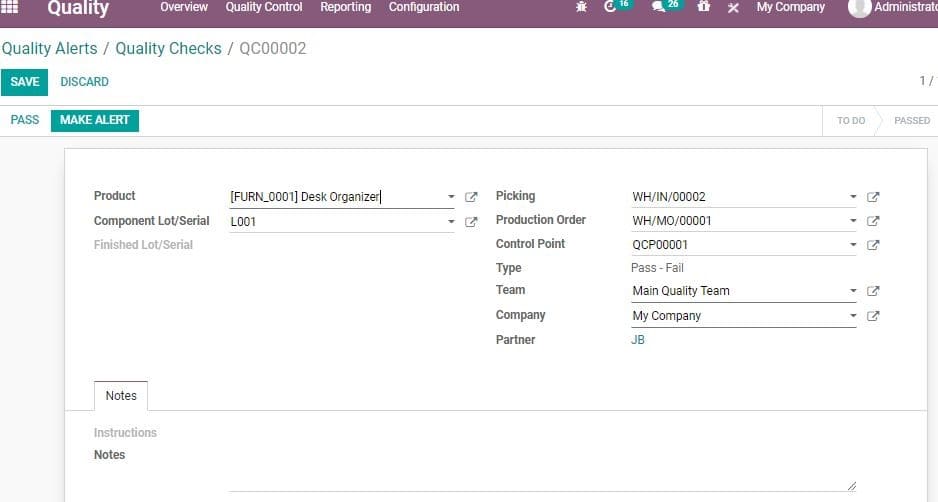

If the quality is tested as failed, then the Quality Alert button will be activated.

odoo-manufacturing

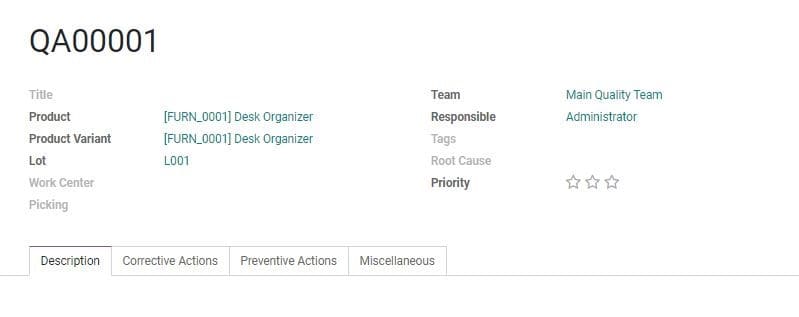

This quality alert setting form has many fields. As given below

odoo-manufacturing

Product: Name of the product requiring quality alert

Lot Number/Serial Number: IF the product has lot or serial number set them in Lot.

Tag: Add or create tags for understanding the quality issues.

Root Cause: The main cause for the quality issue.

Priority: Quality Alert will be generated or shown based on the priority. The user will get alert of high priority first.

odoo-manufacturing

Description: Description of quality issues.

Corrective Actions: Actions required for correcting quality issues.

Preventive Actions: Precautions to be taken against type of quality problems.

These 3 notes get displayed on the Quality Alerts. The Quality Team can refer these notes to take necessary actions.

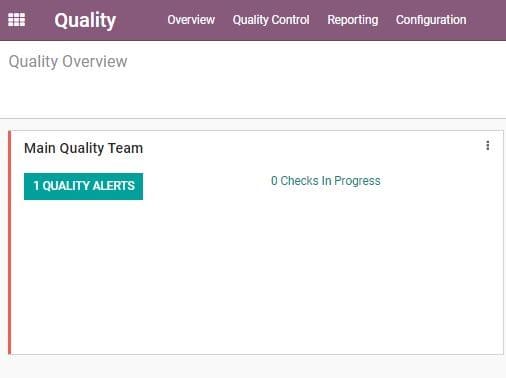

Created Quality Alerts will be displayed in the overview of Quality Teams.

odoo-manufacturing

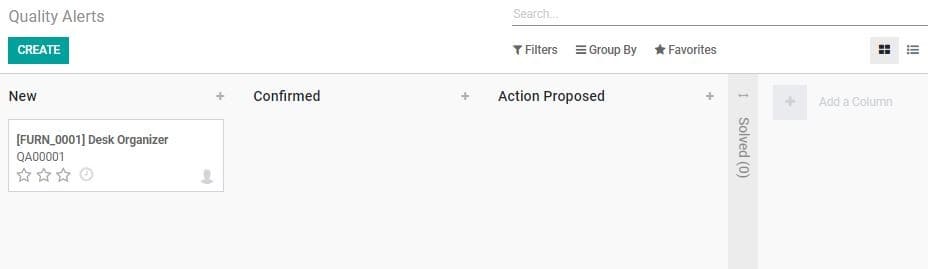

Quality Alerts for different stages will be shown in the Quality Alerts based on current status of the alert.

odoo-manufacturing

As mentioned earlier, alerts will be generated based on the set priorities. Here, in the above given image we can find the solved stage of the alert in folded form. The moment, the Quality Alert reaches Solved state; quality alert will be removed from the overview of the Quality Team.

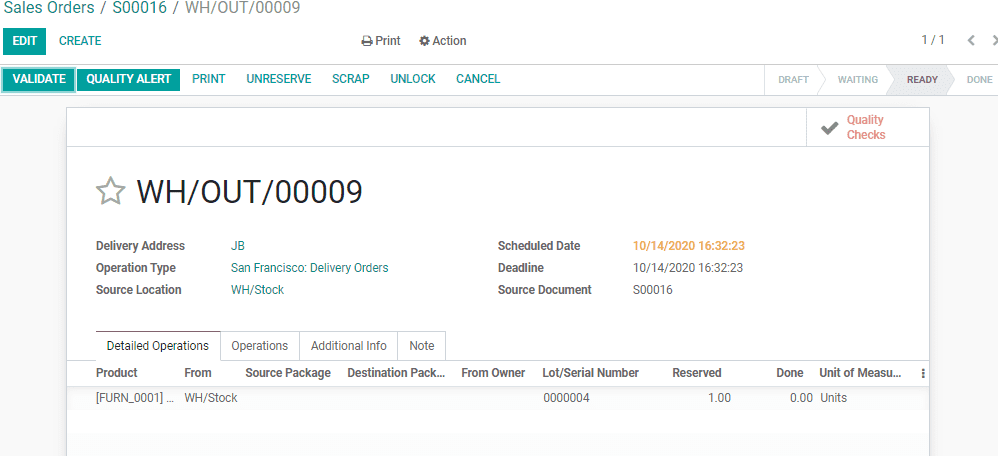

Note: Quality Alert directly notifies the Quality Team. In Sale Order the Quality Check Smart Button turns into red color.

odoo-manufacturing

Quality reporting

Configuration:

Quality> Reporting

In Odoo there are two types of Quality Reporting

Quality Alerts

Quality Checks

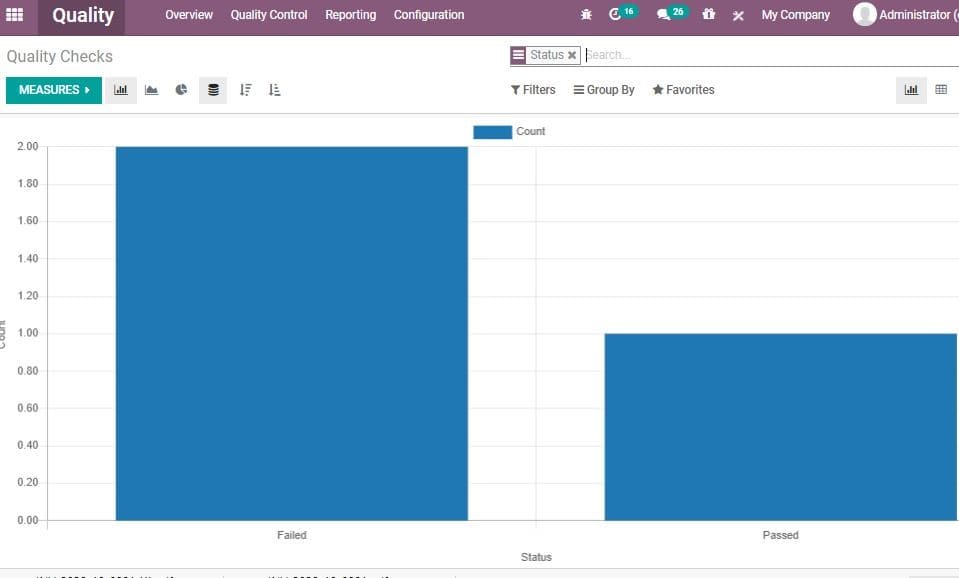

Let us see Report for Quality Checks

odoo-manufacturing

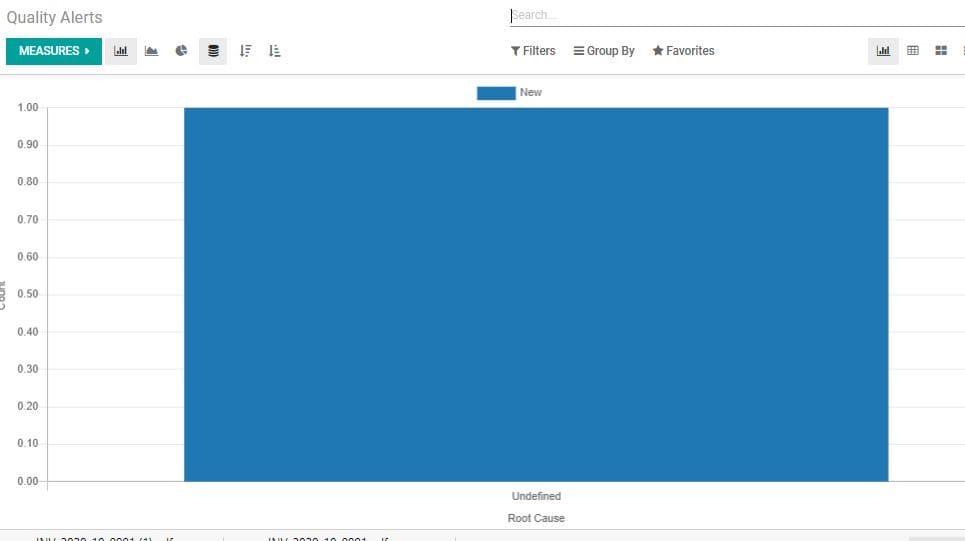

Now let us see the report for Quality Alerts

odoo-manufacturing
