Odoo 14 book

Routing

Routing keeps track of the production operations or stages to be followed to produce the finished product. It also helps the end user to record the time spend on each manufacturing action and understand the next step. What’s more? It also helps to add a new view where the end user can add different instructions related to the work. This will help to avoid mistakes. Usually, the engineering manufacturing wing performs all these steps. These steps are usually done by the engineering manufacturing department. Odoo helps to learn about what all process have already been completed and the steps pending. This also helps to improve the process. Odoo offers an intuitive interface to set all activities in a few minutes and manage the manufacturing process efficiently.

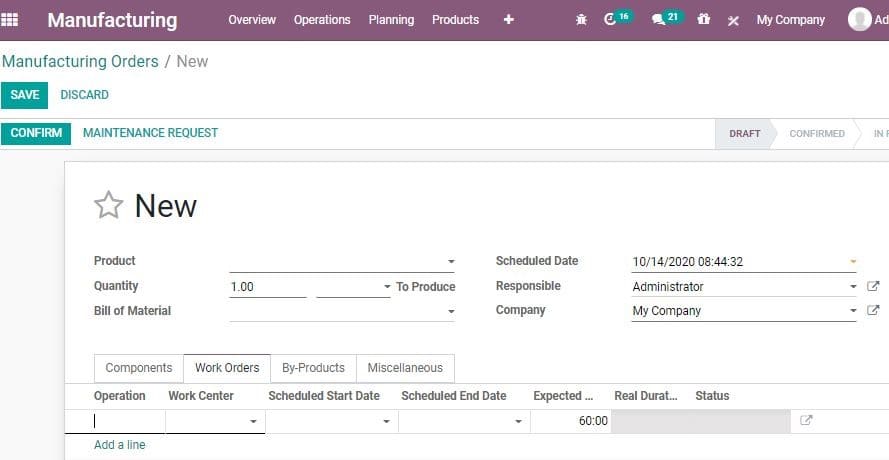

A user can Create routing in Odoo in a few steps. For this, Go to Manufacturing> Manufacturing Orders> Work Orders

odoo-manufacturing

Here, you can find the option to add a line.

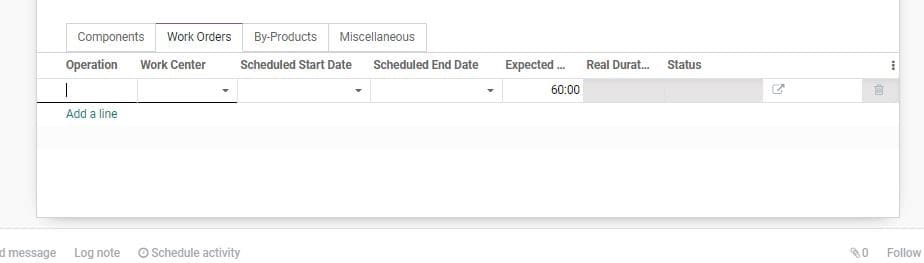

Then click on Add a line

odoo-manufacturing

Here, the user can add the details, including Operation, WorkCentre name, scheduled start date, scheduled end date, expected duration and status.

The user can add as many operations and work centres as required using this field to complete the routing process.

As the manufacturing order is based on the BoM, the system will follow the route specified in the manufacturing order. Here you can find a routing enabled manufacturing order.

odoo-manufacturing

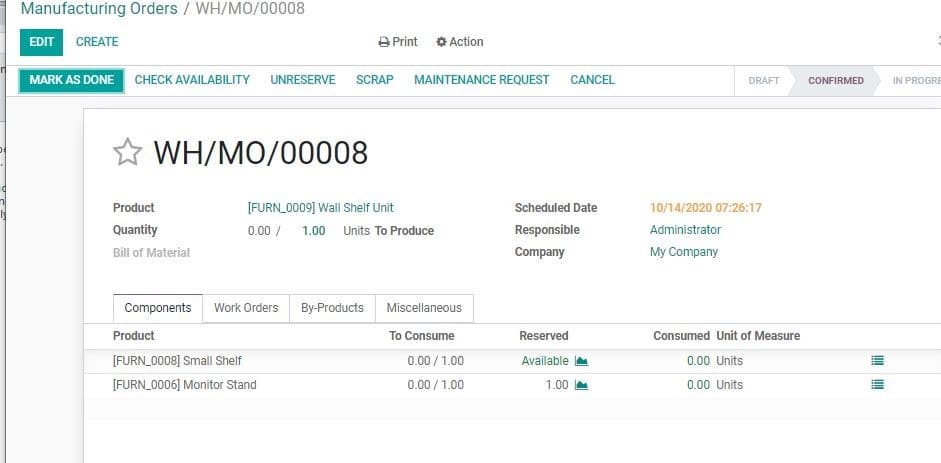

Here, you can Check the availability of raw materials by clicking on the Check availability button. Then click Work orders button to create all the work orders based on the routing.

odoo-manufacturing

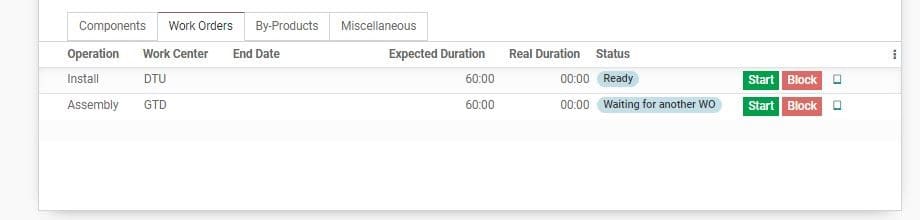

The user can start the process by clicking the START button.

odoo-manufacturing

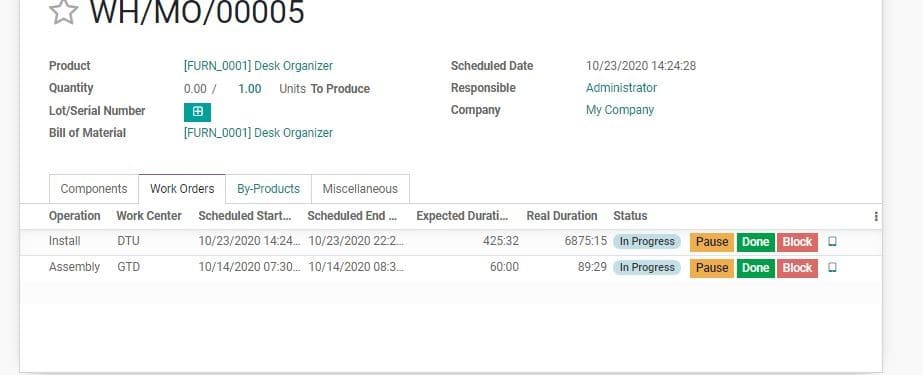

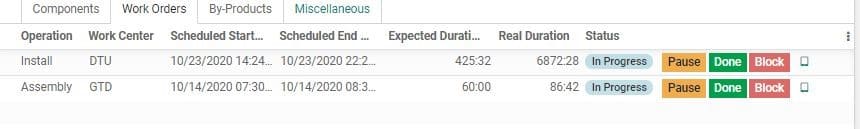

After the work is completed click Done to start the next work order.

odoo-manufacturing
