Odoo 14 book

Creating an engineering change order

Configuration

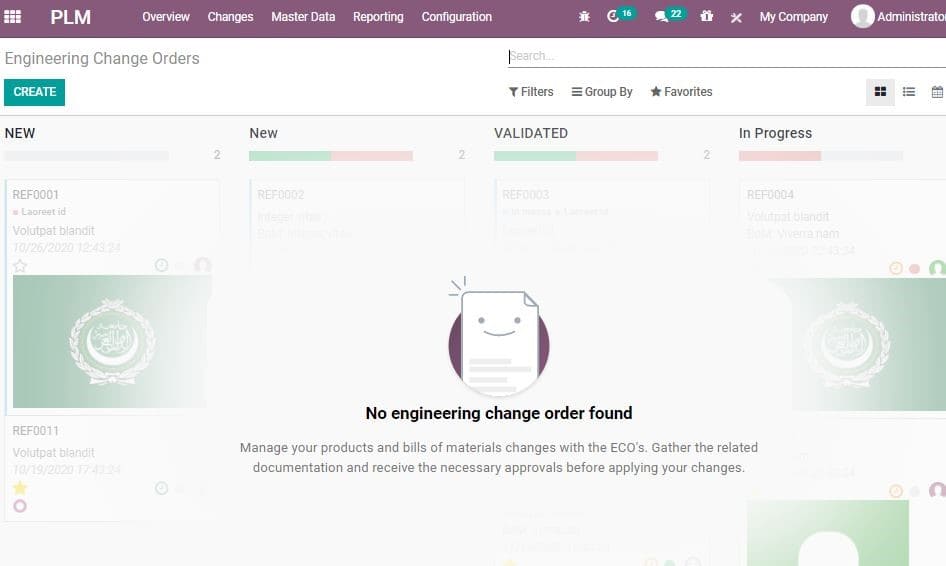

Go to PLM> Changes

odoo-manufacturing

Now, click CREATE button, to create new ECO.

odoo-manufacturing

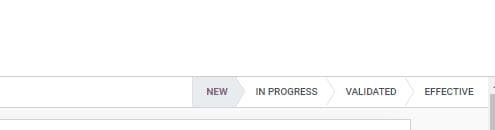

On the right top of this form one can see different stages through which ECO passes.

odoo-manufacturing

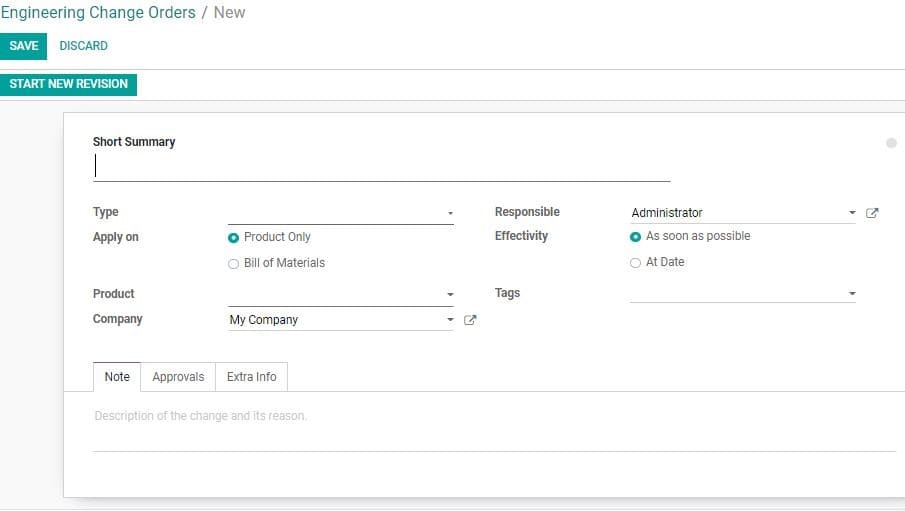

In the Create Form you can find the given fields

Short summary: This field given a short summary of the ECO

Type: The type of ECO.

Apply on: Here, the user can decide where the order has to be applied. The user can apply on Product Only/ BoM

Effectivity: The proposed date on which the changes should be applied.

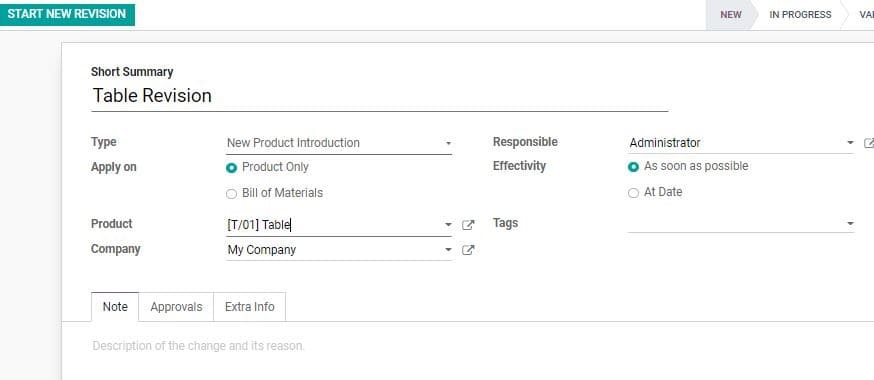

A user can add tags for the ECO, product detail, responsible detail etc. also in the form. Besides, the Notes option below the form helps the user to cite the reason for the ECO. After completing all these works, save the changes and confirm start new revision.

odoo-manufacturing

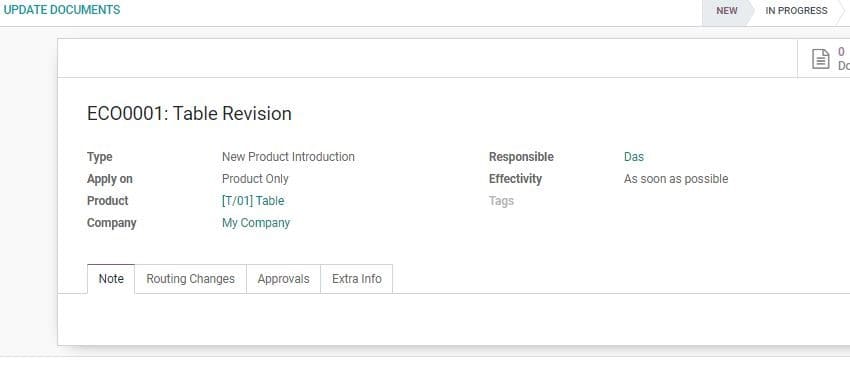

On making any changes by clicking Start New Revision the user will be given option to update document. On making any changes the corresponding number of revisions will be notified on top of the ECO.

odoo-manufacturing

This is the engineering change order of Product in PLM module. The same way we can also create ECO in bill of material, routing, both routing and BoM. ECO in the product will enable the end user to update the documents related to that product and upload documents. A user can view the uploaded document as attachment of the product. If the product undergoes engineering change order then it comes under the components of another product.
